Laptop Repair

Laptop Before Palmrest Replacement

Started: October 9, 2021 at 10:36 am

Did not have anything going on this weekend, therefore, I figured I would have a few hours without interuption to work on replacing the palmrest on this Lenovo.

New Palmrest

Ready to get started 10:36 am


All the major componants mount on the palmrest, so, this will require a major disassembly, of the laptop.

Ready to open things up

10:37 am

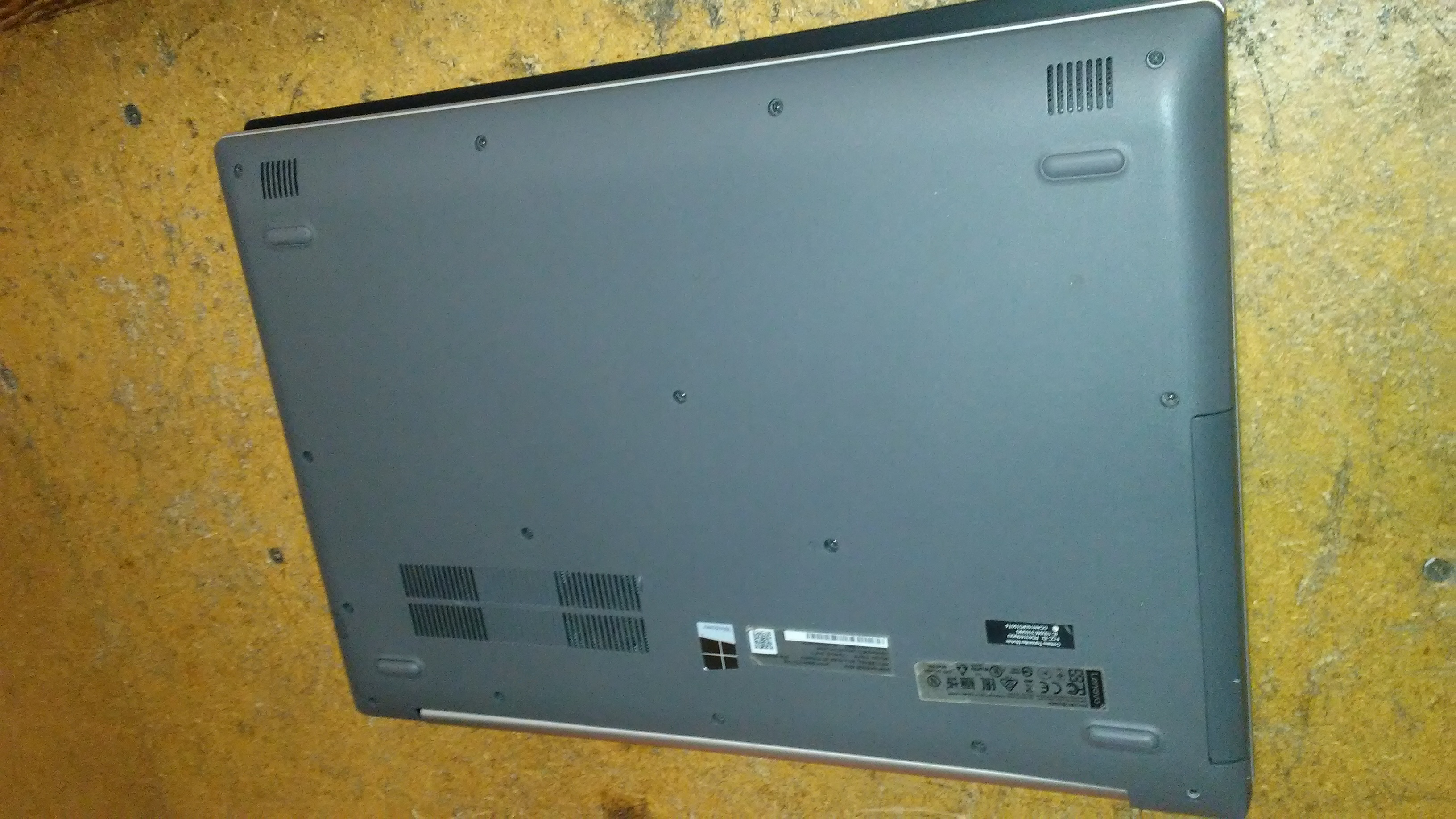

Just examining the screws that need to be removed. Don't want to miss any.

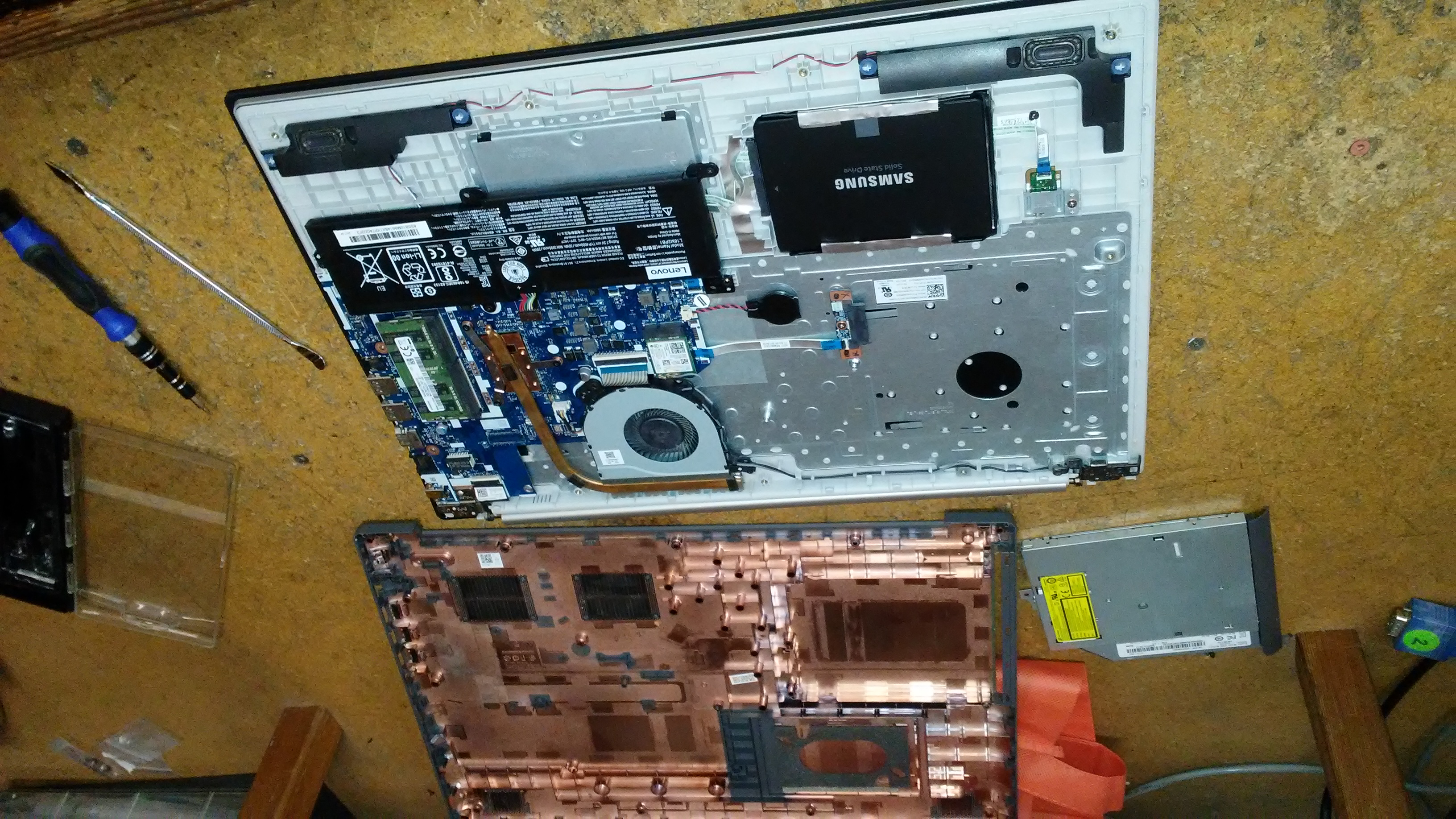

Bottom Cover Removed

10:44 am

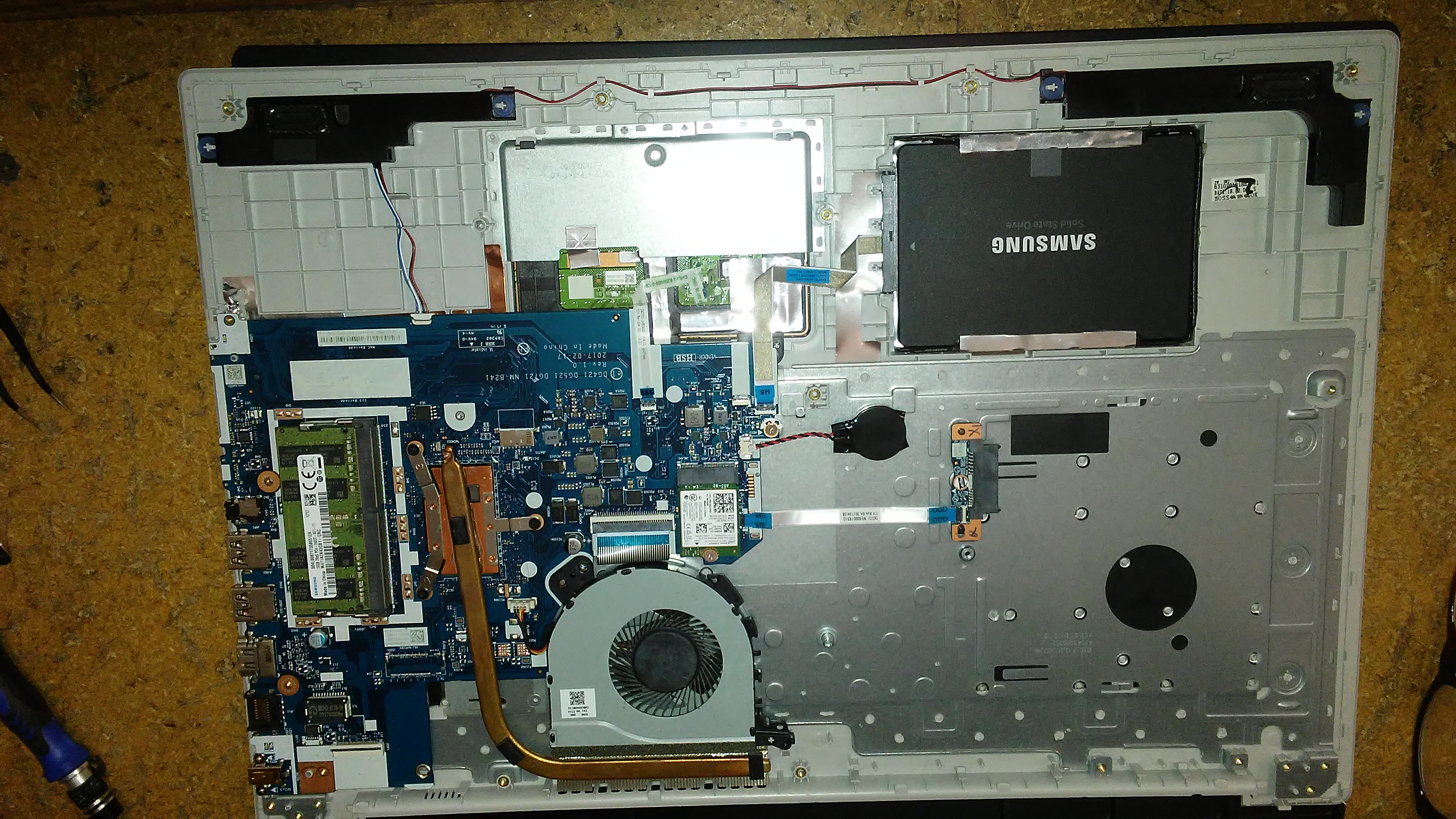

With the bottom cover off the inside of the laptop is revealed. I feel like a surgen each time I work on one.

Finally We have separation

11:07 am

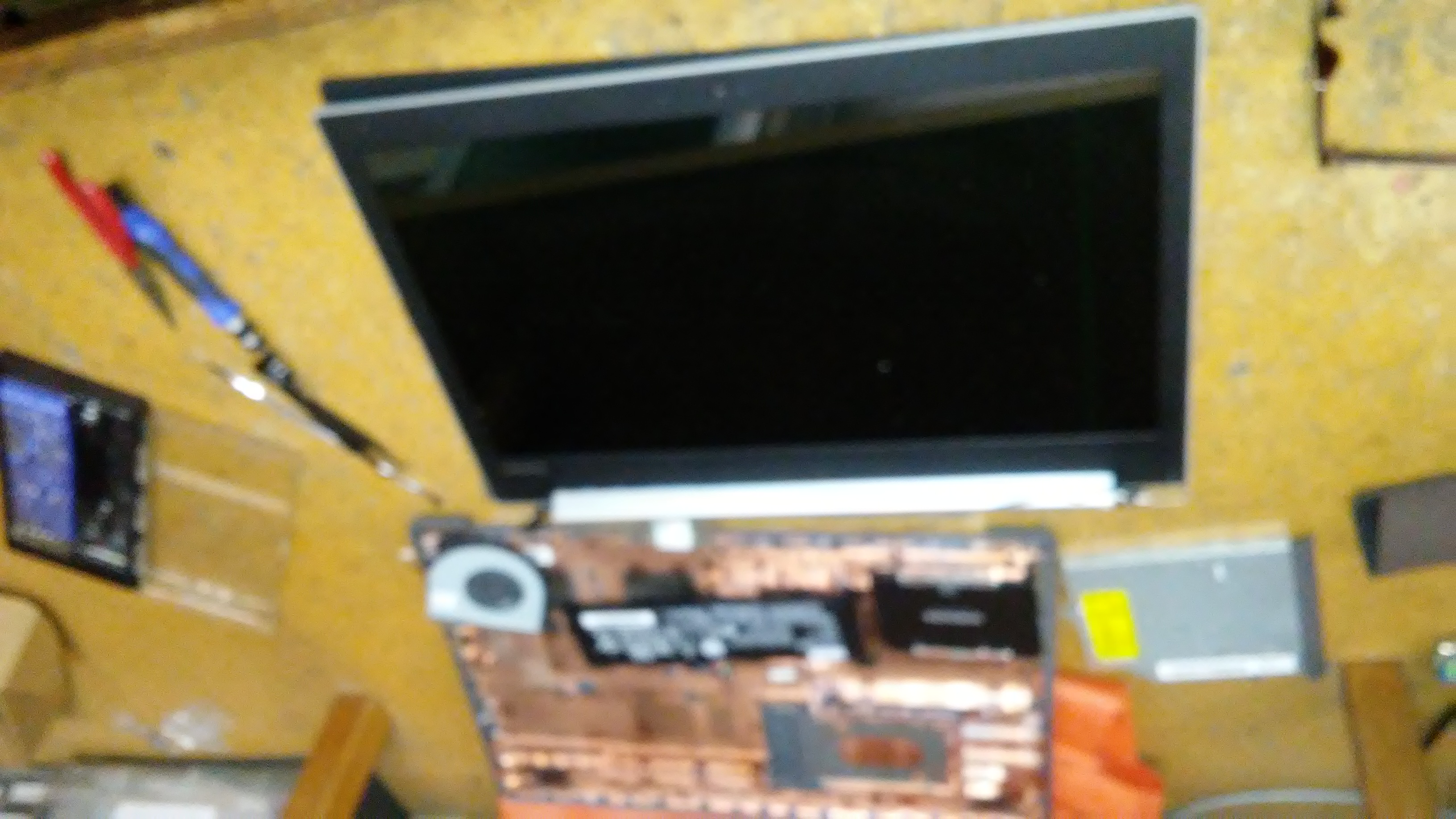

The LCD display panel has been seperated from the palmrest.

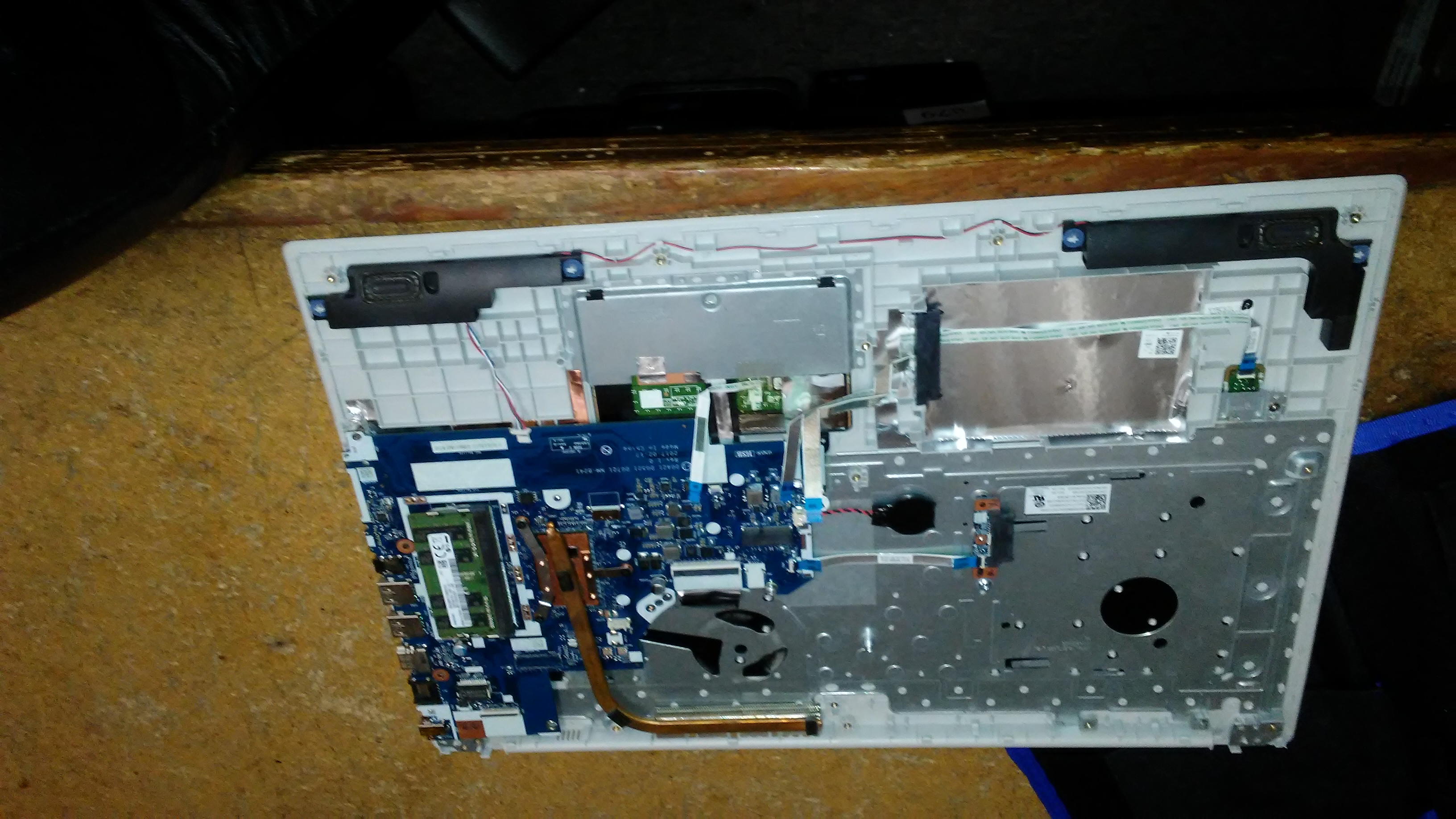

Palmrest Seperated from the LCD Panel

11:07 am

The palmrest is now ready for system board removal

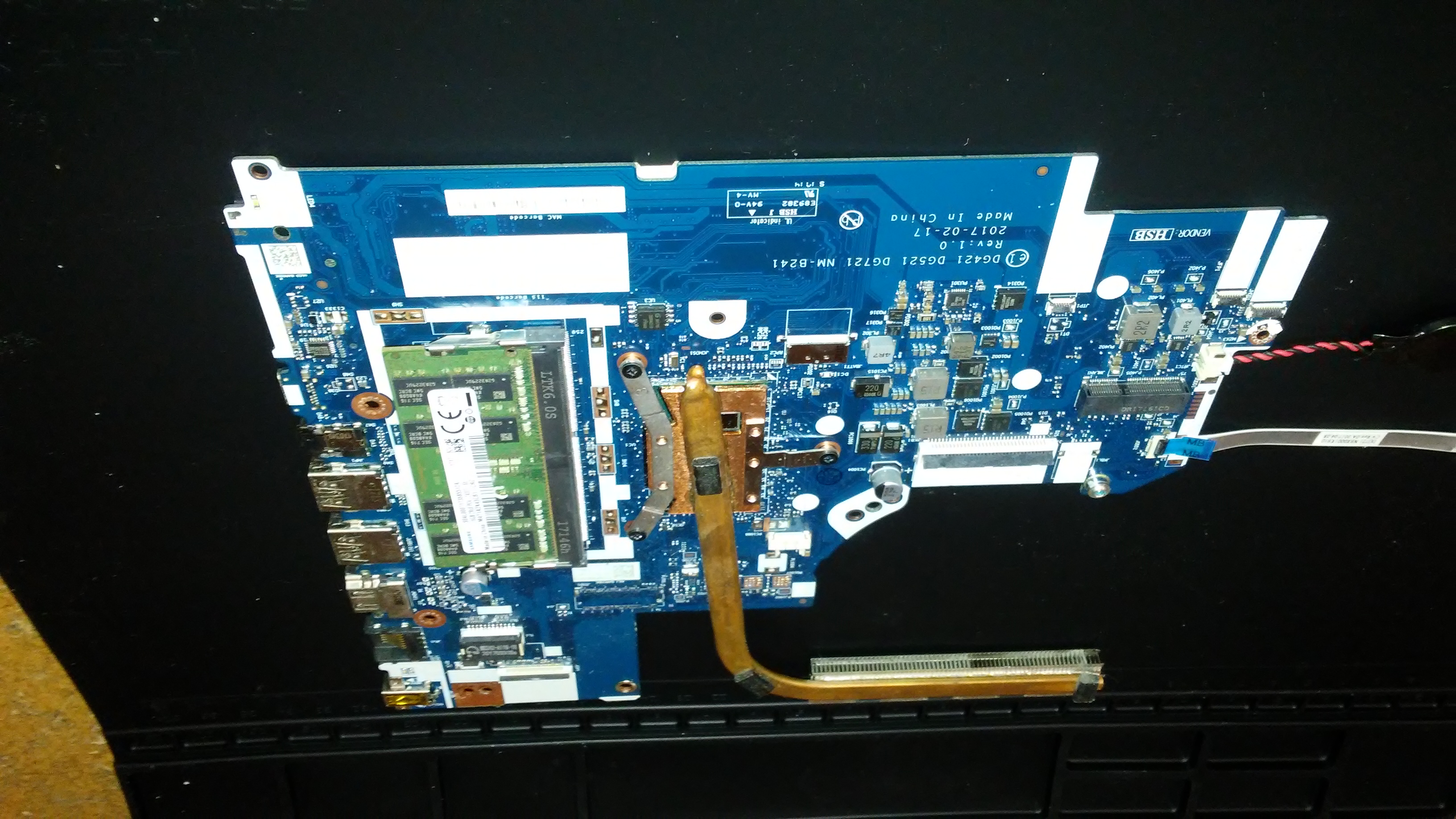

System Board Removed

11:09 am

The system board and all other critical componants have been removed from the palmrest.

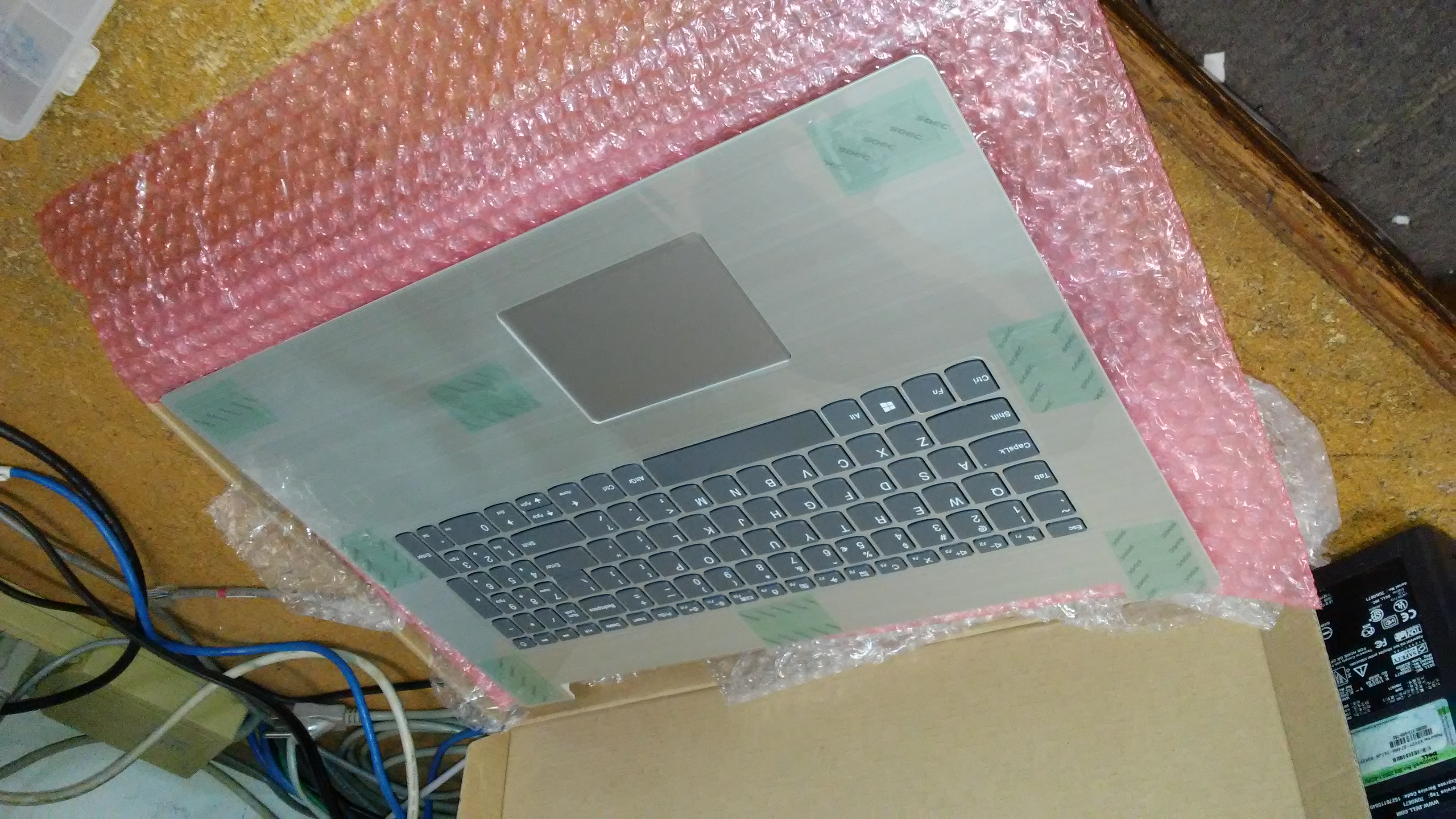

New Palmrest Ready for Reassembly

11:10 am


The new palmrest laying on the antistatic mat awaiting reassembly.

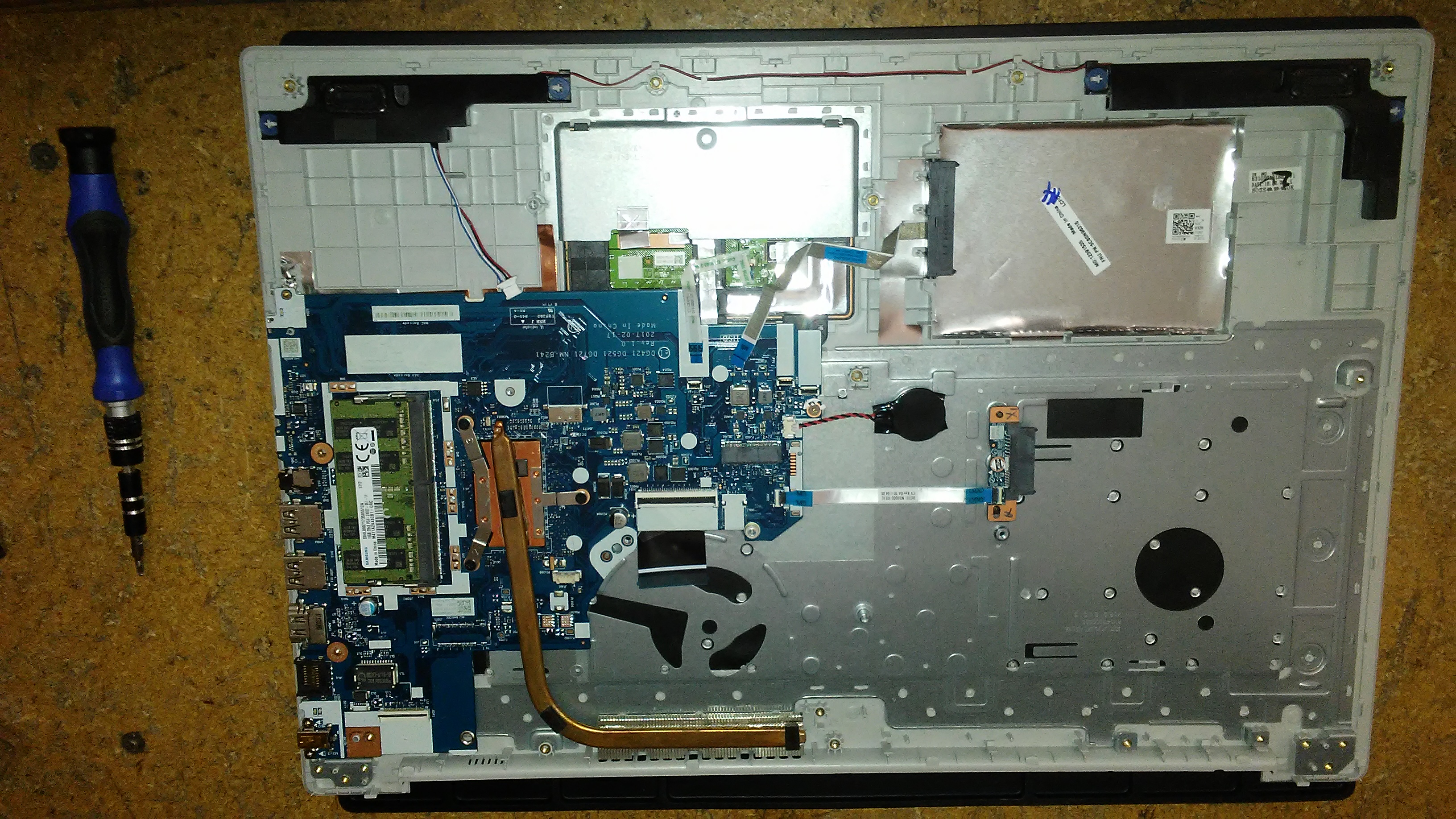

System Board In-place

11:14 am

I am making good time, the system board is back in place on the new palmrest.

Were getting things Connected

11:23 am

The hard drive and fan have been re-installed, and touch pad and keyboard are reconnected.

Reconnecting the LCD Panel

11:33 am

The LCD panel is now mounted to the palmrest. I want to be careful, don't want to put too much stress on the mounting screws.

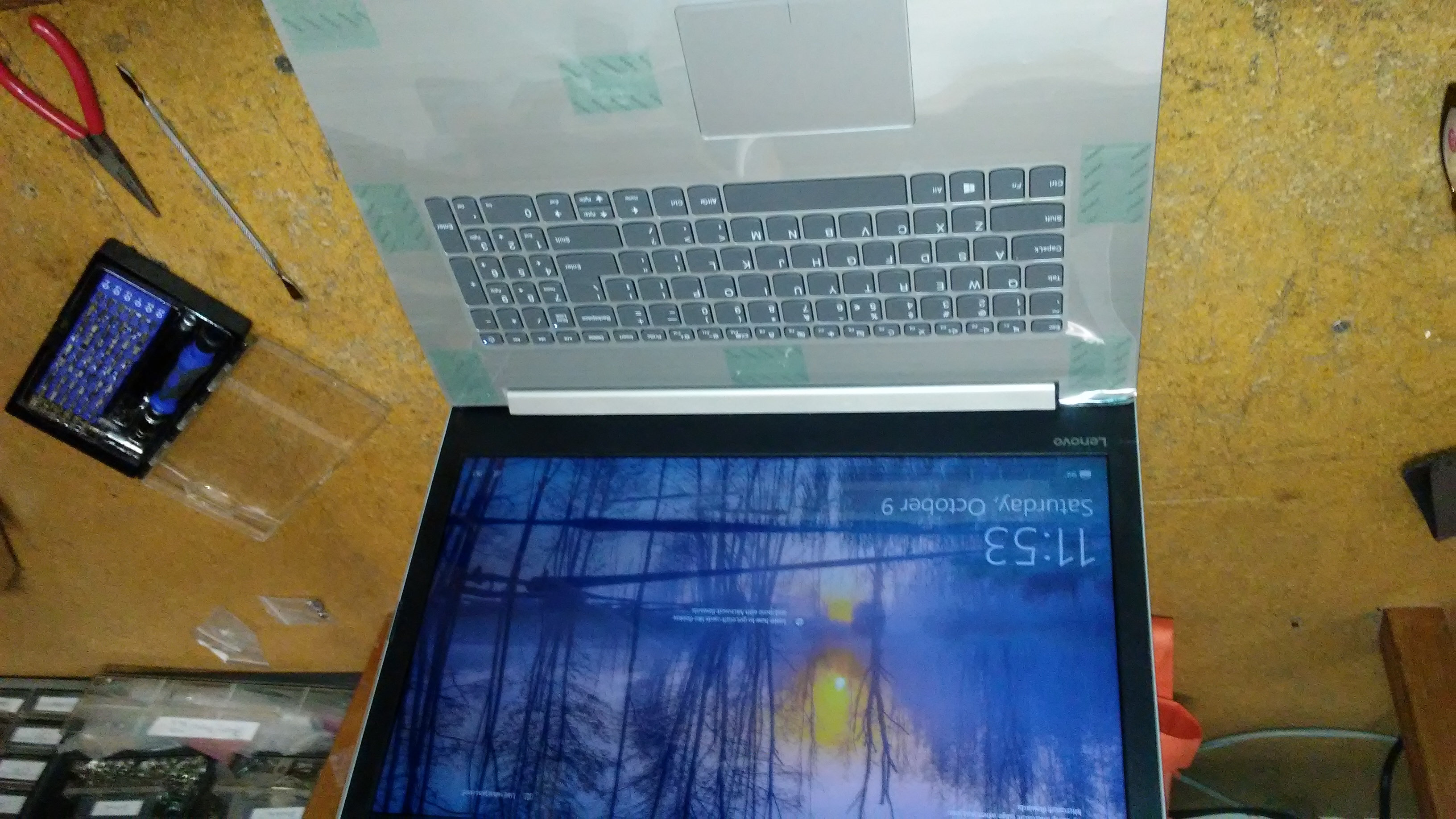

All Together Now

11:53 am

I love it when things come together without any problems Powered things up and they worked the first time. Total time from the start to finish was 1 hour and 17 minutes.
